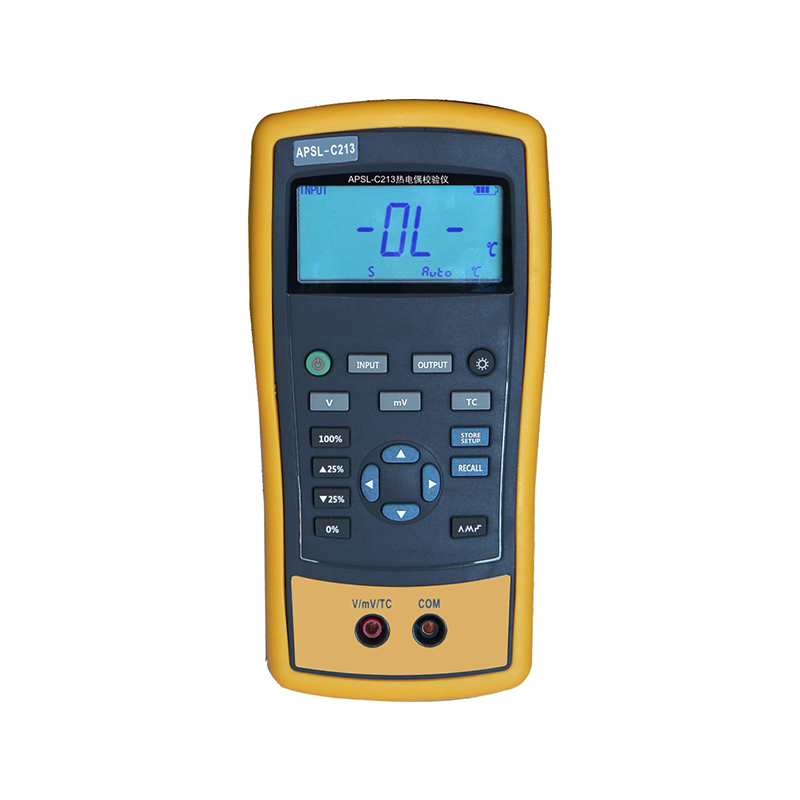

APSL-C213/253 thermocouple calibrator

APSL-C213/253 thermocouple calibrator

分享到微信

×
Product overview   apsl-c213/c253 thermocouple calibrator is a hand-held calibrator integrating measurement and output of thermocouple, voltage and millivolt signals. It has LED backlight for use in dim places.Product features   super protective function: waterproof grade IP67, any signal termin
Product Details

Product overview

   apsl-c213/c253 thermocouple calibrator is a hand-held calibrator integrating measurement and output of thermocouple, voltage and millivolt signals. It has LED backlight for use in dim places.



Product features

   super protective function: waterproof grade IP67, any signal terminal is wrongly connected to 220V automatic protection;

   simulate thermocouples in the form of temperature;

   the accuracy is 0.02% (apsl-c213 type), 0.05% (apsl-c253 type);

   it can provide manual step, automatic step, 0 ~ 100% step and slope output functions;

   with white LED backlight, with manual backlight adjustment and automatic power off functions, suitable for field use;

   adopt standard 7# battery, which is convenient for customers to replace and purchase;

   thermocouple measurement and output provide automatic and manual cold end temperature compensation;

   new thermocouple types can be added according to customer needs.

   measurement index

  

function

range

Accuracy



APSL-C213

APSL-C253

Voltage

0~30.000V

0.02%+2

0.05%+2

millivolt

-15.000mV~80.000mV

0.02%+2

0.05%+2


80.00mV~125.00mV



Thermocouple measurement

J、K、T、E、R、S、B、N


  Output indicators
  

function

range

Accuracy



APSL-C213

APSL-C253

millivolt

-15.000mV~99.999mV

0.02%+2

0.05%+2


100.00mV~125.00mV



Thermocouple

J、K、T、E、R、S、B、N



  

General technical specifications

   service temperature: -10 ℃ ~ 55 ℃;

   storage temperature: -20 ℃ ~ 60 ℃;

   relative humidity: 0 ~ 90% RH, non condensing;

   weight: 350g;

   overall dimension: 185mm × 93mm × 47mm;

   power supply mode: 6 7 ;

   communication mode: RS232.

   standard accessories

   probe: 1 pair of 18a53 probes;

   power adapter: one 18a52 charger.

   options

   RS232 communication line: 18p02 communication line.

   attachment

   power adapter (18a52)

   probe (18a53)

   7 nickel metal hydride battery
