1. Product overview

This product has obtained four independent intellectual property rights (zl201220302065.8, zl201220302062.4, zl201420689202.7201530021958.4). The apsl601 portable full-automatic pressure verification platform includes pressure generation, pressure measurement, electrical signal measurement and HART communication functions, which is suitable for verifying pressure transmitters, pressure switches (pressure controllers), pressure indicators, etc.

Apsl 601 Series Portable full-automatic pressure calibrator can have Hart function built-in to replace Hart manual operator, set or calibrate the range of Hart transmitter, make the output current of Hart transmitter at a fixed value (such as 20mA, 12mA, 4mA), set linear or square function, and can Hart reset the pressure sensor of the transmitter. It is more convenient to use than Hart manual operator.

2. Functional features

It can automatically verify pressure transmitter, pressure switch and pressure indicator.

Verification of pressure transmitter:

Standard verification points: 0%, 25%, 50%, 75%, 100% of the range, automatic return. User defined verification point: any pressure value.

The default voltage stabilization time of the verification point: 20 seconds, which can be set arbitrarily between (10 ~ 240) seconds.

The whole process time of automatic verification (9:00): about 5 minutes.

The built-in HART protocol can be used as a manual operator of an intelligent transmitter.

Pressure switch verification: it can automatically detect the action value and reset value of the pressure switch, and can detect the contact resistance of the pressure switch.

Safety protection: overvoltage, overvoltage sensor failure and other protection.

Loop power supply: dc24v/30ma. If it is connected to the standard meter by mistake, it will not damage the standard meter.

Pressure interface: m20*1.5 internal thread quick connector.

Current / voltage interface: ф 4 standard banana plug.

Power supply: 24V lithium battery, working time 24 hours.

Service temperature: water medium (5 ~ 50) ℃, other medium (-5 ~ 50) ℃.

7-inch true color large LCD touch screen, beautiful and generous operation interface.

Overall dimension: 215 (height) *280 (depth) *320 (width) mm.

Weight: 10kg.

3. HART Communication

  Support the calibration of Hart intelligent instruments.

4. Rich task management and functions

  

It supports the information management of the calibrated instrument, the parameter setting of the calibration process, the automatic execution of the calibration process, the automatic analysis of the data, the automatic marking of the super handicap, the rapid storage of the calibration results, and the downloading of tasks and uploading of data.

5. Full automatic verification

Automatically verify the transmitter, automatically record the verification results, and automatically print the verification report;

Fully automatic verification pressure switch, automatically capture the upper and lower switching values, automatically record the verification results, and automatically print the verification report;

Fully automatic verification of pressure indicator, automatic calculation of error, automatic recording of verification results, automatic printing of verification report.

6. Easy to use

Friendly user interface, which can display curves.

You can see the instructions on the touch screen.

Automatic leak detection, with leak alarm function.

When the battery is low, you can use the AC adapter.

7. Performance index

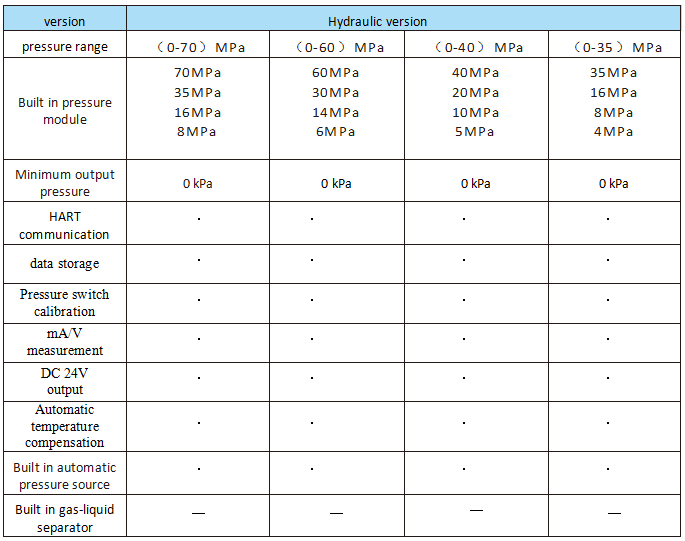

Pressure range: (0 ~ 60) MPa, accuracy: grade 0.05; Display resolution: 5 bits.

12 pressure units are available: PA, kPa, MPa, psi, bar, mbar, inh2o, mmh2o, inHg, mmHg, kgf/cm2, ATM, etc.

Current measurement range: (0 ~ 22) MA, accuracy: 0.02 or 0.05.

Voltage measurement range: (0 ~ 5.5) V, accuracy: level 0.05.

Resistance measurement range: (0 ~ 22) Ω, accuracy: Level 1.

8. Control performance:

Pressure control stability: < 0.025%F.S。

Overshoot: less than 0.1% of the range.

Control response time: less than 120 seconds.
